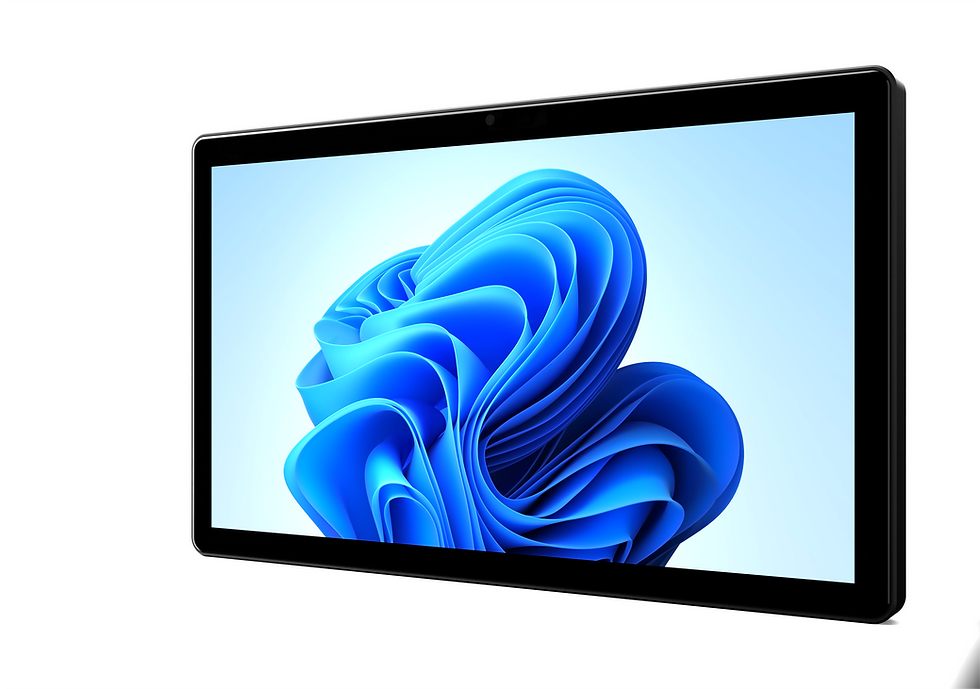

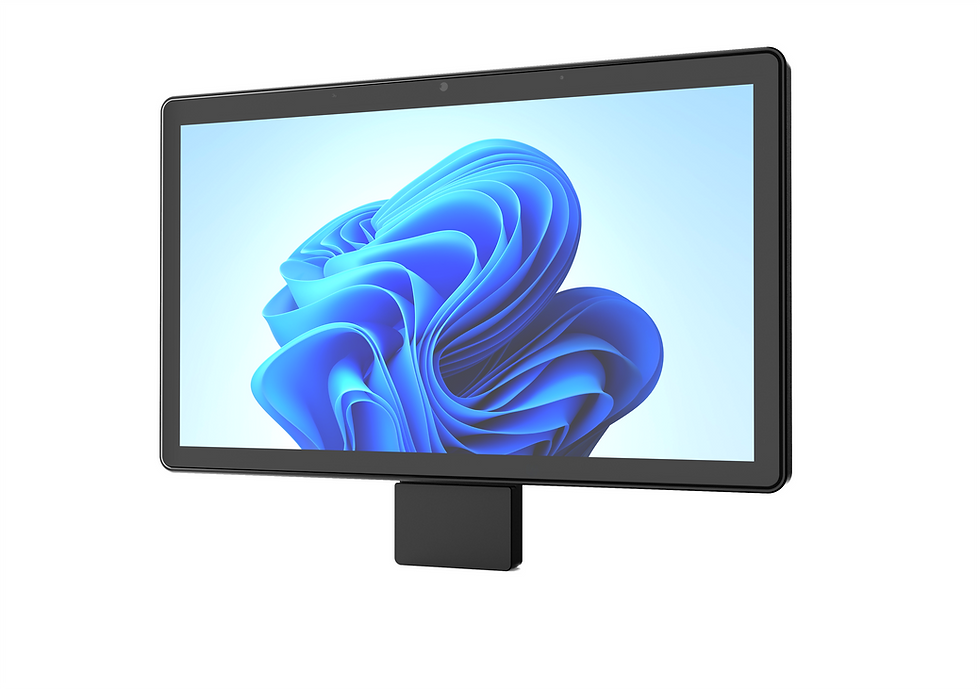

The Ultron 15.6-Inch Windows Touchscreen Computer (Gen 12) is designed to deliver a blend of performance, versatility, and user-friendly interaction. With its large, high-definition display and powerful Intel Core i3 processor, this touchscreen computer is ideal for various applications, including retail, education, and industrial environments. Its durable build and advanced features make it a reliable choice for users seeking efficiency and functionality.

Display Specifications
Size: 15.6 inches
Resolution: 1920 x 1080
Panel Brightness: 450cd/m²
Brightness with Touch Screen: 400 cd/m²
Contrast Ratio: 1000:1
Aspect Ratio: 16:9
Active Display Area: 344.16 × 193.59 mm
Viewing Angle: 89°/89°/89°/89°
Response Time: 20 ms


Touchscreen Specifications
Touch Technology: G+G (Glass + Glass) 10-point capacitive touch
Anti-Glare Glass: Yes
Surface Hardness: ≥ 7H
Touch Method: Finger touch, capacitive stylus
Transparency: ≥ 85%
Touch Glass Thickness: 2 mm (excluding sensor thickness)
Bonding: Support Optical bonded capacitive touch Panel


Processor and Performance
CPU: i3-1215U
CPU Turbo Boost: 4.4 GHz
E-core Max Turbo Frequency: 3.3GHz
Cores/Threads: 6 cores, 8 threads
CPU Cache: 10 MB
BIOS: AMI UEFI BIOS


System Configuration
OS: Windows 11 64 bit, Linux 64 bit
GPU Chipset: Intel Iris® Xe Graphics eligible/UHD Graphics depends on CPU
RAM: 8GB , Dual Channel SO-DIMM DDR4  (Max 64GB)
Storage: 256 GB, M.2 NVMe 2280 SSD


Sensors and Features
Sensor: CPU system temperature,  Onboard Voltage, Watchdog and Auto Power On
Camera: 2 MP
Speaker: 2 x 2W
Buttons: 1 x Power Button


Connectivity
Wi-Fi: IEEE 802.11a/b/g/n/ac/ax(PreStandard)
Bluetooth: Bluetooth 5.0(Dual antenna)
Ethernet: LAN 1 x (1000Mbps) ; 1 x (2500Mbps)
I/O Ports:  2 x RJ45, 4 x USB 3.2, 1 x (1000Mbps), 1 x (2500Mbps)LAN Inside PCBA: SATA3.0 x 1, 6 x RS232(default) or 5 x RS232+1 x RS485(COM1), 4 x USB2.0 header , 8 x GPIO


Power
Power Supply: External DC 12V 7.5A
Power Usage: TBD


Regulatory and Compliance
Regulations: FCC, CE, UKCA, RoHS support
REACH SVHC: Does not contain SVHC above 0.1% (e.g., lead)


Packaging and Shipping
Included in Box: Ultron tablet, Power Adaptor, Power cable
Dimensions (L x W x H): 376.47 x 228.47 x 42.8mm
Weight: 2.9kg
Box Size (Per Unit):  443 x 115 x 303 mm
Master Box Size: 464 x 365 x 327mm
Master Box Weight: 12.3Kg
Pieces per Carton: 3pcs
