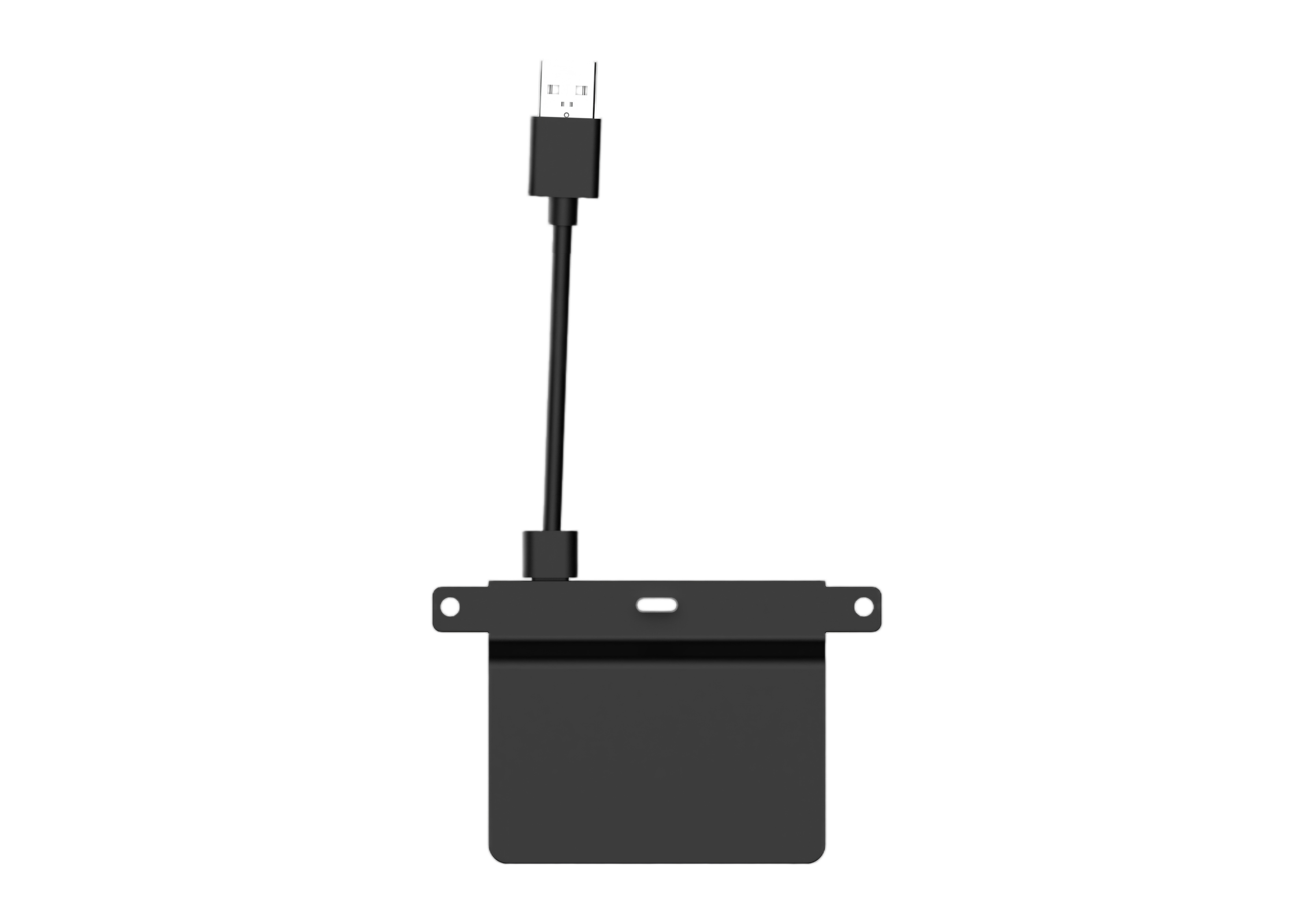

The RFID Reader and NFC module automatically identifies persons and conduct access management.  The accessory is easily installed by user, providing an integrated solution and  eliminating the need for external brackets or attachments.

General Information
Model: RFID-ELA
Part Number: HFP
Reader Type: RFID Reader Brand: Elatec


Technical Specifications
Interface: Dual Type-C
Frequency Range:
Low Frequency (LF): 125 kHz / 134.2 kHz
High Frequency (HF): 13.56 MHz
Read Distance: Up to 5-20 mm (depending on environment and transponder)
Voltage: 5V
Transmission Speed: USB Full speed (12 Mbit/s)
Operating Modes:
USB keyboard emulation
USB virtual COM port
CCID / PC/SC 2.01


Supported Transponders (Standard)
ISO14443A:
LEGIC Advant, MIFARE Classic EV1, MIFARE Classic, MIFARE Mini, MIFARE DESFire EV1, MIFARE DESFire EV2, MIFARE Plus S/X, MIFARE Pro X, MIFARE Smart MX, MIFARE Ultralight, MIFARE Ultralight C, MIFARE Ultralight EV1, NTAG2xx, PayPass, SLE44R35, SLE66Rxx (my-d move), Topaz
ISO14443B:
Calypso, Calypso Innovatron protocol, CEPAS, HID iCLASS, Moneo, Pico Pass, SRI4K, SRIX4K, SRI512, SRT512
ISO18092 ECMA-340:
NFC Forum Tag 1-5, NFC Peer-to-Peer, Sony FeliCa, NFC Active and passive communication mode
ISO15693:
EM4x33, EM4x35, HID iCLASS, HID iCLASS SE/SR, ICODE SLI, LEGIC Advant, M24LR16/64, MB89R118/119, SRF55Vxx (my-d vicinity), Tag-it, PicoPass
125 kHz / 134.2 kHz:
AWID, Cardax, CASI-RUSCO, Deister, EM4100, EM4102, EM4200, EM4050, EM4150, EM4450, EM4550, EM4305, FDX-B, EM4105, HITAG 1, HITAG 2, HITAG S, ICT, IDTECK, Isonas, Keri, Miro, Nedap, PAC, Pyramid, Q5, T5557, T5567, T5577, TIRIS/HDX, TITAN (EM4050), UNIQUE, ZODIAC, Cotag, G-Prox


Additional Supported Transponders
Standard Support:
Cotag, G-Prox, HID DuoProx II, HID ISOProx II, HID MicroProx, HID ProxKey III, HID Prox, HID Prox II, Indala, ioProx, Nexwatch
With Additional Cost (Requires External TWN4 SIO Card):
All Standard Transponders, All Version P Transponders, HID iCLASS, HID iCLASS SE/SR/SEOS (CSN and Facility Code/PAC), HID iCLASS Elite & SE Elite


Operating Environment
Working Temperature: 0–45°C


Software and Compatibility
Operating System: Android
Status Alert: Buzzer (Beep sound indicates successful card reading within 5-20 mm, depending on environment and card type)


What's in the Box
RFID module
2 screws
Type-C data cable


Physical Characteristics
Enclosure Color: Black
Product Weight: 50g
Product Dimensions: 95.6 x 60.3 x 18.2 mm
Gift Box Weight: 95g
Gift Box Dimensions: 140 x 83 x 44 mm
