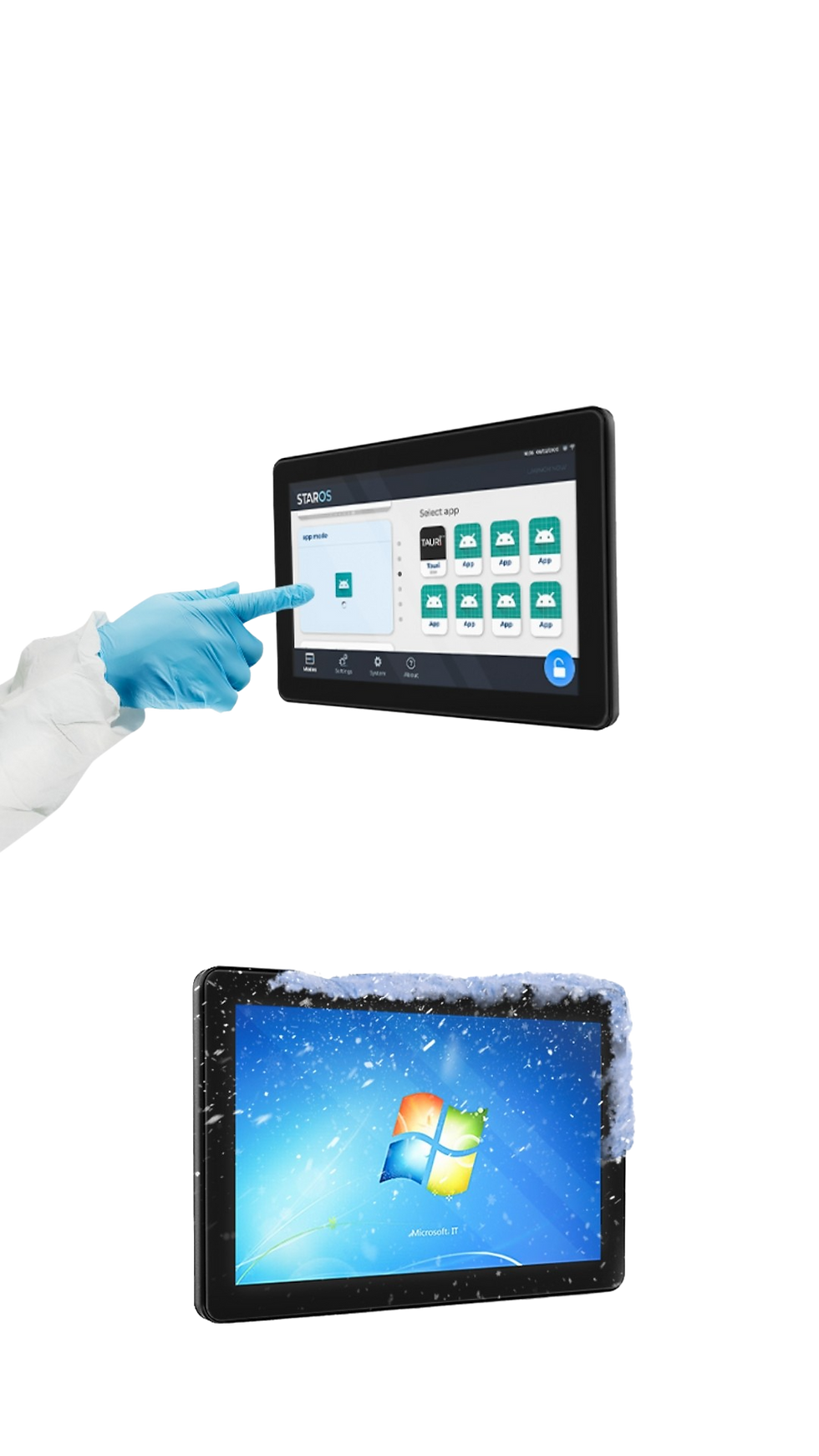

The Magnetar 21.5-Inch Windows Weatherproof Touchscreen Monitor features IP65 protection and 1000-nit brightness for vivid outdoor visibility. With 6H scratch-resistant glass and glove/water touch support, it’s ideal for outdoor touchscreen display applications like EV charging stations, self-order kiosks, ticketing kiosks, and kitchen displays. Powered for reliable performance, it’s perfect for high-traffic digital signage and public use with seamless Windows integration

Display Specifications
Screen Size: 21.5 inches
Resolution: 1920 x 1080
Brightness: 1000 cd/m²
Contrast Ratio: 5000:1
Aspect Ratio: 16:9
Active Display Area: 476.64 x 268.11mm
Viewing Angles: 89°/89°/89°/89°
Response Time: 25 ms (Display), ≤ 35ms (Touch)
Graphics: Intel Iris® Xe Graphics (eligible) or UHD Graphics (CPU-dependent)


Touchscreen Specifications
Touch Technology: G+G Capacitive Touch, 10-point Multi-Touch
Touch Features: Supports touch on water or with latex gloves
Surface Hardness: ＞6H
Transparency: ≥ 86%
Cover Glass Thickness: 2.7 mm
Input Methods: Finger, Capacitive Stylus


Durability and Environmental
IP Rating: IP65 (Front), IPX2 (Rear)
Impact Resistance: IK07
UV Protection: Yes
Operating Temperature: -10℃ to 60℃


Processor and System
CPU: Intel Celeron J6412
Max Clock Speed: 2.6 GHz
Base Clock Speed: 2.0 GHz
Cache: 1.5 MB
BIOS: AMI UEFI BIOS
Operating Systems: Windows 10 IoT Enterprise LTSC 2019 English version 64 bit), Linux 32 / 64 bit
System Monitoring: CPU temperature, onboard voltage, watchdog, auto power-on


Memory and Storage
RAM: 8GB , Single Channel SO-DIMM DDR4(Max 32GB)
Storage: M.2 - 2280 256GB SSD


Connectivity
LAN Ports: 2(10/100/1000Mbps)
Wireless: IEEE 802.11a/b/n/ac, Wi-Fi compliant , Bluetooth 4.0
USB Ports: 4 x USB 3.2, 3 x USB2.0 header(internal)
Serial Ports: 5 x RS232 / 1 x RS485 (COM1, internal)
GPIO: Programmable 8 x GPIO (internal)
Audio: Line-out x 1, Mic-in x 1
Speakers: 2W x 2


Power & Electrical
Power Consumption: 55W
Power Input: AC 100-240V, 50/60 Hz
DC Input: 1 x 12V DC-IN, 4.5A
Power Adapter: 12V 5A
System Monitoring: CPU temperature, onboard voltage, watchdog, auto power-on


Packaging and Shipping
Included in Box: MAGNETAR Tablet, Power Adaptor, Power Cable, Adjustable mounting brackets
Dimensions (L x W x H): 523.9×315.4×46.3mm
Weight: 6.7 kg
Box Size (Per Unit): 583 x 115 x 382mm
Master Box Size: 604 x 248 x 406mm
Master Box Weight: 15.2kg
Pieces per Carton: 2 pieces
