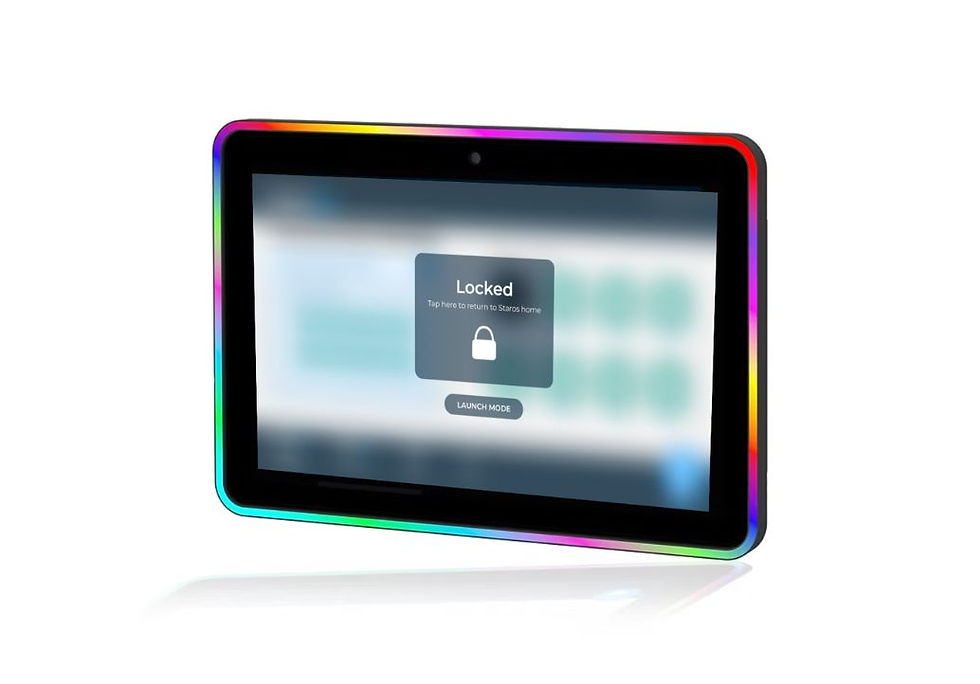

Nebula Glow X 10 Inch Human Machine Interface (HMI) Touchscreen is a rugged and reliable industrial HMI designed for demanding environments, automation control, and harsh operating conditions.

Built with a durable optically bonded G+G capacitive touch panel featuring ≥6H surface hardness, 2mm strengthened glass, and robust ABS flame-retardant housing, it offers excellent impact resistance and reliable performance. With a wide 0–45°C operating temperature range, VESA mounting, POE support, and full industrial certifications (FCC, CE, UKCA, RoHS), this tough 10” HMI ensures long-term durability in factory floors and control panels.

Display Specifications
Size: 10 inches
Color: Black
Resolution: 1280 x 800
Panel Brightness: 500 cd/m²
Brightness with Touch Screen: 425 cd/m²
Contrast Ratio: 1000:1
Aspect Ratio: 16:10
Active Display Area: 216.576 ×135.36 mm
Viewing Angle: 85°/85°/85°/85°
Response Time: 30ms


Touchscreen Specifications
Touch Technology: G+G (Glass + Glass) 10-point capacitive touch
Surface Hardness: ≥ 6H
Touch Method: Finger touch, capacitive stylus
Transparency: ≥ 85%
Touch Glass Thickness: 2 mm (excluding sensor thickness)
Bonding: Optical bonded capacitive touch panel


Processor and Memory
CPU: 8-core CPU (Dual-core Arm® Cortex®-A76+Hexa-core Arm® Cortex®-A55, Up to 2.0 GHz)
RAM: 4GB LPDDR5
ROM (Storage): 64GB EMMC Flash
Operating System: Android 15
GMS: Yes, GMS Supported
AOSP: Yes, AOSP Supported


Multimedia Support
Video Formats: H.265, VP8, RV, WMV, AVS, H.263, Mpeg4, Up to 4K decoding, HTML5, Flash 10
Audio Formats: MP3, WMA, AAC, etc.
Image Formats: JPEG, BMP, PNG
Speaker: 2 x 2W
Camera: 2 MP
Noise Cancellation: 2 microphones with noise canceling
Sensor: Ambient and Proximity sensor


Connectivity
Wi-Fi: 802.11 a/b/g/n/ac 2.4GHz & 5GHz (Dual antenna)
Bluetooth: BT 5.0
Ethernet: 10/100/1000 LAN POE
I/O Ports: RJ45 x 1, TF slot x 1, TYPE C x 1(onlyOTGupgrade）, USB2.0 x 1, 3.5mm audio x 1, DC x 1


Power
Power Supply: External DC 12V 2A
Power over Ethernet (PoE):  Yes (IEEE802.3af)
(Choose either Power In or POE but not both at the same time)


Regulatory and Compliance
Regulations: FCC, CE, UKCA, RoHS support
REACH SVHC: Does not contain SVHC above 0.1% (e.g., lead)


Packaging and Shipping
Included in Box: Nebula Tablet, power adapter, power cable
Dimensions (L x W x H): 267.05×185.69×28.85mm
Weight: 1.1kg
Box Size (Per Unit): 385 x 222 x 65mm
Master Box Size: 470 x 400 x 355mm
Master Box Weight: 15.2kg
Pieces per Carton: 10 pieces
