Magnetar AI
15.6-Inch High Brightness Outdoor Display





The 15.6-inch high brightness outdoor display Magnetar is IP65-rated, featuring a dust and water-resistant front glass, making it an industrial-grade solution for outdoor digital signage and self-order kiosks. Its 1000 nits high brightness touchscreen ensures exceptional visibility in bright outdoor environments, while the fingerprint and scratch-resistant 6H touch glass provides seamless and accurate touch response for demanding applications like EV charging stations and industrial outdoor touchscreens. Cost-effective for system integrators, this Android-powered, sunlight-readable touchscreen is designed with reliability from the start, offering 24/7 performance for indoor and outdoor applications, including ticketing kiosk monitors and healthcare displays.
Interactive
Touchscreen Features.



Touch on Water Technology
Accurate touch response even with water or latex gloves on the front glass.

Connectivity
3x USB 3.0, 1x USB 2.0, 1x RJ45 (10/100/1000Mbps), VGA, and audio ports for Linux touchscreen integration.



Rugged Design with IK07 Impact Rating
Built for harsh environments and continuous use
Seamless Integration


MUSEA:
Digital Signage Software
MUSEA is a cloud-based digital signage software for creating and managing interactive signage content remotely. With drag-and-drop functionality and support for multiple file types, it integrates with Star Control for centralized management across retail, hospitality, and education.

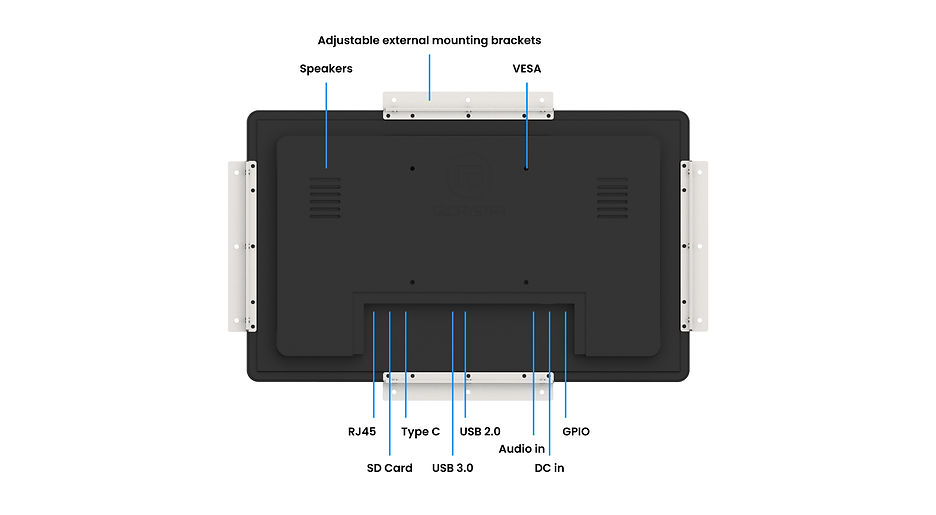

These adjustable mounting brackets allow integrators to install and place the Magnetar outdoor touchscreen in flush with your enclosure integrations.

Specifications.
Panel Info
Size | 15.6" |
Resolution | 1920 x 1080 |
Brightness | 1000cd/m² |
Contrast | 1000:1 |
Aspect Ratio | 16:9 |
Active Display Area | 344.16 x 193.59mm |
Viewing Angle | 89°/89°/89°/89° |
Impact Rating | IK07 |
Response Time | 25ms |
Touch Data
Touch Tech | G+G Capacitive Touch 10pt IP65 Rating Optical bonded capacitive touch (touch on water or latex glove) UV Protection |
Hardness Of Surface | >6H |
Touch method | Finger touch, Capacitive Stylus |
Transparency | ≥86% |
Touch Glass Thickness | 2.7mm |
Hardware & OS
CPU | Quad-core Cortex-A72 up to 2.2GHz, Quad-core Cortex-A53 up to1.8GHz |
RAM | 4GB LPDDR5 |
ROM | 64GB eMMC |
OS | Android 15 |
Linux OS | Support Debian12 |
GPU | ARM Mali-G52, touted as 3x faster than the Mali-T860MP4 in the older RK3399 |
NPU | 6 TOPS (Trillion Operations Per Second) of processing power |
Software
STAROS | License Free Kiosk Mode App and Multi App Mode, Auto Lockdown, Browser and Media Mode |
STAR CONTROL(OPTIONAL) | Remote Mobile Device Management |
STARTOOL | Open Source API |
Musea | • Digital Signage Software • Remote Creating and Managing Interactive Signage Content Remotely |
Video/Image
Video Format | H.265, VP8, RV, WMV, AVS, H.263, Mpeg4, Up to 4K decoding, HTML5, Flash 10 |
Audio Format | MP3, WMA, AAC, etc. |
Image Format | JPEG, BMP, PNG |
Audio/Communication
Speaker | 2 x 5W |
Bluetooth | BT 5.0 |
Sensor | 1 x Ambient light and Proximity Sensor |
WIFI | 802.11 a/b/g/n/ac/ax WiFi6 2.4GHz & 5GHz (Three antenna) |
Ethernet | 1 x RJ45, 100/1000 LAN |
General
Color | Metal Outdoor Housing with Black Matte Paint |
Chassis | IP65 front IPX2 rear |
I/O | DC IN x 1; Audio out x 1; USB2.0×1; USB3.0×1; TYPE-C OTG×1; TF CARD×1; RJ45×1 ; 1×UART; 2×GPIO; 1×Wiegand; 1×VCC-5V |
Included in Box | MAGNETAR Tablet, Power Adaptor, Power cable, Adjustable mounting brackets |
POE | N/A |
Operating Environment | -10℃—60℃ |
Language | Multi Language |
Power Management
Power supply unit | External |
Power supply | 12V 5A |
Power usage | TBD |
Sustainability
Regulations | RoHS support |
REACH SVHC | REACH does not contain SVHC above 0.1%: Lead |
Mounting & Dimensions
VESA | VESA 100 |
Dimensions ( LxWXH) | 389.45×238.74×40.8mm |
Weight | 3.43kg |
Box size / each pc(LxWXH) | 443 x 115 x 303mm |
Master Box size ( LXWXH) | 464 x 365 x 327mm |
Master Box Weight | 13.7kg |
Pieces/ Carton | 3pc. |
Ideal Applications.

Outdoor Kiosk Displays
Perfect for self-order kiosks in restaurants or retail settings.

EV Charging Touchscreens
Reliable interface for electric vehicle charging stations.

Ticketing Kiosk Monitors
Streamlined ticketing solutions for transportation or events.
Industrial Automation
Durable displays for control panels in harsh factory environments.


Healthcare Displays
Hygienic, glove-friendly touchscreens for medical settings.

Outdoor Digital Signage
Interactive kiosks with AI recommendation engines and customer analytics via 2MP camera and touch interface for personalized shopping.
Amazing accessories
to complete your perfect kiosk touchscreen computers.
The outdoor Touchscreen Computers offers a wide assortment of optional peripherals such as magnetic card swipe, RFID/NFC readers and barcodes that enables flexibility for rigorous use in continuous public use for fitness consoles, system terminals, retail e-catalog, employee access control, corporate check in, restaurant self ordering, hotel check in, etc.
Look into
Magnetar AI
Used by everyone,
read our success stories.
Frequently Asked Question
Q: Can Magnetar units lock down to open specific web pages?
A: Yes, both Windows and Android versions of Magnetar can launch and lock directly into full-screen browser pages or Progressive Web Apps (PWAs) using StarOS kiosk mode.
Q: Are Android 14 updates available for Magnetar (MAG215)?
A: Firmware updates for Android 14 are available via USB/PC flashing. Standard Magnetar firmware operates on AOSP (Android Open Source Project) without Google Mobile Services (GMS)
Q: Can wireless modules (Wi-Fi/Bluetooth) or cameras be removed for secure sites?
A: Yes, for high-security applications, Magnetar units can be customized without Wi-Fi, Bluetooth, or front camera modules, and memory can be upgraded (e.g., up to 16GB RAM / 512GB SSD).
Q: Can cellular (4G LTE/5G) connectivity be added to Magnetar?
A: Cellular modules can be customized; however, adding direct cellular antenna ports to the rear housing may reduce rear ingress protection. For full outdoor waterproof deployments requiring 4G/5G, installing the unit inside a weatherproof kiosk housing or enclosure is recommended
Q: Does the touchscreen work with gloves or in wet/soapy environments?
A: The optically bonded PCAP touch screen performs reliably through rain, snow, and condensation. Direct liquid and soapy water on the front glass do not interfere with touch performance. Touch performance with gloves depends on glove thickness; capacitive/touch-compatible gloves operate smoothly.
Q: What protective ratings and screen enhancements does Magnetar offer?
A: Magnetar features IP65-rated front bezel water/dust protection, optical bonded capacitive touch glass for maximum glare reduction and durability, IK07 impact resistance, and High-TNI liquid crystal panels to prevent screen blackening under direct sunlight exposure.
Q: Can the Magnetar series operate in severe sub-zero outdoor environments?
A: Yes, Magnetar outdoor displays are built with commercial-grade components designed to operate in temperatures ranging from -15°C to +40°C. They are widely deployed in extreme climates such as Iceland and the Nordics for outdoor parking kiosks, car washes, and ski resorts.
